Ideal for quality control of parts from the press brake

■Feature　　　　　　　　　　　　　　　　　　　　　　　　　　　　■specifications

・Quickly measure angles between 20 degrees and 180 degrees.　　Measurement range 20°～180°

・Angle measurement accuracy to +/-0.05 degrees.　　　　　　　　 Minimum reading　　1/0.01°

・Digital display to 0.01 degrees.                                                                    Instrumental error　±5'

                                                                                                                                  Display unit　0°0’(base of 60) or 0.00°(decimal)

                                                                                                                                  Battery　UM-4 type dry battery cells x 2 pcs

                                                                                                                                  Battery life　About 80 hours (UM-4 type dry battery cells x 2 pcs)

                                                                                                                                  Operating temperature　5～40℃

                                                                                                                                  Storage temperature　-10～60℃



Two styles available:

1. Standard - Handheld with digital readout

2. Wireless - Handheld with digital readout and WIFI connection



WIFI connection enables direct communication of readouts to the machine NC controller or to Excel spreadsheets including automatic cell advance for recording multiple readings.



WIFI connection can be configured to communicate directly with NC machine controllers enabling real-time adjustment to the bending cycle.









▼ Please see the product videos of EZ Digital Angle Measurement Instrument.

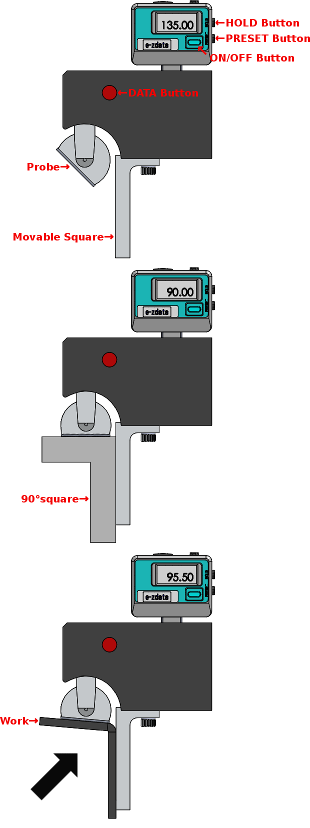

How to operate

1.Power

Press ON/OFF button Powering ON, degree is displayed on the LCD.













2.Retract

Press PRESET button after setting the movable square into the probe. 90 degree is displayed on the LCD.













3.Measure

Measure the angle by setting the product into the probe. Pressing Hold button, you can retain the displayed angle.("H" light on) Pressing the Hold button again,release the hold button again.("H" light off).















4.Data transfer

Pressing red DATA button,measured angle is sent to to NC controller.Pressing the Hold button retains the displayed readings.
