① Easy Setup

All standard tools are 12.7mm in diameter, compatible with globally standard tools. Only a hex wrench is required to change the upper and lower tools.

Machine Operation Settings

1) Rotate the pressure volume while applying pressure. Check the pressure gauge to confirm.

2) Adjust the pressure timer with the volume.

3) Depending on the location, adjust the stroke with the volume.

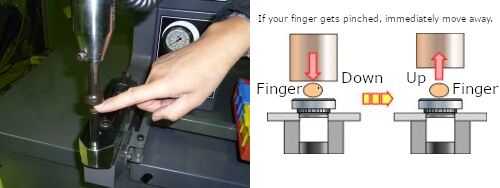

② Retraction mechanism

The pressurization mode will not be activated unless the punch(upper die)and die(Lower die) come into contact and the appropriate voltage is applied. If a non-conductive object is caught in the punch, the punch(upper die)

will immediately rise. (In non-conductive mode, the operation requires two presses.)

③ Pressure Control Method

The R618 employs pressure control. Each fastener has its own appropriate pressure and maintenance time.

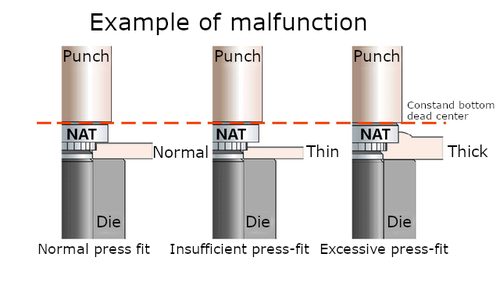

The R618 prevents excessive or insufficient pressure from being applied to compensate for variations in material, and ensures that the appropriate pressure is applied to compensate for variations that occur when only controlling the bottom dead center.
